Small High Speed Air Spindle 0.85KW 200V Water Cooled CNC Motor Spindle

YUEYANG XIANLONG MOTOR CO., LTD (KLKJ Group Co.,Ltd)
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Small High Speed Air Spindle 0.85KW 200V Water Cooled CNC Motor Spindle

  • 1
  • 2

Brand Name : KLKJ

Model Number : KL160G

Certification : ISO9001:2008

Place of Origin : China

MOQ : 1PC

Price : Negotation

Payment Terms : T/T;L/C;WESTERN UNION

Supply Ability : 500SET/MONTH

Delivery Time : 10-25 WORKING DAYS

Packaging Details : STANDARD BROKEN-RESISTANCE PACKAGE

Material : Steel, Copper,

Color : Blue or black(cylinder) ,

Contact Now

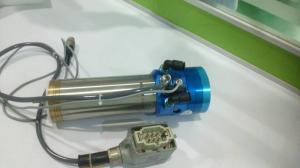

Compatible ABL H516D WW D1722 160,000RPM KL160G High Speed Air Spindle Motor PCB PRECISION DRILLING

Quick Detail:

MODEL

REPLACE FOR

DESCRIPTION

KEY PRECISION

Machine reference

KL160G

H516D

D1722

SPEED RANGE : 20,000 - 160,000 rpm

Ø6.35mm-0.05mm precision drilling

Static Runout : <2µm

Dynamic Runout : <7µm

Vibration : 1.0MM/S

KLINGINBERG PLURITEC

HITACHI

LENZ

ANDERSON ….

PRODUCT DESCRIPTION

KL160G industry standard body style and tool holding system spindle replace for ABL H516D or WW D1722 Full Range from 20,000 to 160,000 rpm, air bearing type in long life, spindle weight 4.1kg with Diameter tool 3.175mm and body size Ø 61.9,Max power 0.85KW, Collet torque(N.cm) >=150. Sensor available

The Parameter of KL160G :

Max power:0.85KW

Coolant:Water oil

Fixed voltage:200V

Fixed current:4A

Static Runout:<2µm

Dynamic Runout:<7µm

Vibration:1.0MM/S

Competitive Advantage :

Low Static

Low Dynamic RUN OUT

Stable character and long life

Power and very low heat generation

Good slot and big hole drilling

Less running costs

ATC feeder / ATC tool change for micromachining

Environment friendly

KLKJ Advantage

The higher spindle speeds available allow for increased productivity whilst ensuring that accuracy and repeatability is maintained.

Advanced analysis and detailed design has created a spindle with exceptional reliability and increased efficiency.

KLKJ increased productivity and efficiency available allows mass production drilling and routing spindle.

APPLICATION :

PRINT CIRCUIT BOARD PRECISION DRILLER

2 HEAD OR 4 -6 HEAD DRILLER

HOLE RANGE: Ø6.35mm-0.05mm

MACHINE REFERENCE: SCHMOLL POSALUX KLG PLURITEC KLINGEINBERG LENZ EXCELLON HITACHI

SPECIFICATION:

Air Pressure

6.0 kgf/cm²

Coolant water temperature

20+2

Static runout

<2µm

Dynamic runout

<7µm

Collet torque(N.cm)

>=150( 1/8”)

Vibration

1.0MM/S

Collet size

Ø1/8”

Temperature sensor ohms KΩ

R=0.1±5% AT 25℃

Open air pressure

<5 kg/cm²

Close air pressure

>2 kg/cm²

Coolant water flux

>1.5(L/min)

Coolant oil flux

>3.0(L/min)

Air consume flux

74(L/min)

Radial load

6.0kgf

Air Pressure

6.0 kgf/cm²

KL160G SPINDLE OUTLINE DRAWING

Small High Speed Air Spindle 0.85KW 200V Water Cooled CNC Motor Spindle

Why choose KLKJ?

With nearly 15 years technology in spindle maintenance, 10 years success experience for spindles parts production, and 9 years spindle R&D, KLKJ succeed in offer air bearing spindle up to 200krpm.

All spindles at the KLKJ are fully checked and tested using stringent quality control procedures. KLKJ ensures every repaired spindle passes the following points to make it in long life and stable character :

1. Air flow

2. Water flow

3. End float/lift off

4. Axial load (inner)

5. Axial load (outer)

6. Torque

7. Static RUNOUT

8. Dynamic RUNOUT

9. Motor check

10. Vibration

11. Material analysis & strictly quality test detection control

12. Stringent tolerance control

Spindle Quality From Customer

Small High Speed Air Spindle 0.85KW 200V Water Cooled CNC Motor Spindle
