PRECISE CNC High Speed Spindle Process Cellphone Touch Screen Glass

Place of Origin : China
Brand Name : KLKJ
Certification : ISO9001:2008
Model Number : KL60C
MOQ : 1PC
Price : Negotiation
Packaging Details : STANDARD BROKEN-RESISTANCE PACKAGE
Delivery Time : 10-25 WORKING DAYS
Payment Terms : T/T;L/C;WESTERN UNION
Supply Ability : 500SET/MONTH
Contact Now


60,000RPM KL60C CNC High Speed Spindle For Moble phone Touch Screen Glass-Process

Quick Detail:

MODEL

NAME

DESCRIPTION

Application

Bearing type

KL-60C

SPINDLE

SPEED RANGE:10,000 - 60,000 rpm

High speed precision grinding

GLASS GRINDING/ENGRAVING

Ball Bearing




PRODUCT DESCRIPTION

MODEL:KL-60C
NAME :BALL BEARING SPINDLE
SPEED RANGE:10,000 - 60,000 rpm

BEARING TYPE:Ball bearing

SPINDLE WEIGHT:4.6kg

COLLET SIZE:ø6

Air Pressure:≥6 kgf/cm²

Motor power:1.2KW-1.5KW

Coolant:Water oil

Coolant water temperature:20+2

Voltage:33-200V

MAX. CURRENT (A):3A

Dynamic Runout:≤8

Vibration:1.0MM/S

Temperature sensor ohms KΩ: R=10±3% AT 25℃
TORQUE(g): ø6≥1500g

Competitive Advantage:
LOW STATIC
LOW DYNAMIC RUN OUT
STABLE CHARACTER AND LONG LIFE
SUITABLE FOR MOBILE TOUCH SCREEN GLASS-PROCESS
WATER -PROOF


APPLICATION

MOBILE TOUCH SCREEN GLASS-PROCESS


SPECIFICATION:

SPEED RANGE10,000-60,000
FREQUENCY (HZ)167-1000
MOTOR TYPETHREE PHASE
MOTOR OUTPUT POWER1.5KW
TORQUE(g)ø6≥1500g
VOLTAGE (V)33-200
COLLET CLAMPING DIAMETER (mm)ø6
COLLING TEMPERATURE(°C)20
BEARING TYPEBALL BEARING
AIR PRESSURE (kg/cm2)≥6
RUNOUT (μm)≤8
VIBRATION (mm/s)≤1.0
THREE PHASE RESISTANCE (Ω)2.2
COLLET LOCK TYPEDEAD COLLET
SPINDLE WEIGHT (kg)Around 4.6
MAX. CURRENT (A)< 5
GRIP AIR PRESSURE (kg/cm2)≥1.5
RELEASE AIR PRESSURE (kg/cm2)≤4.5




SPINDLE OUTLINE DRAWING

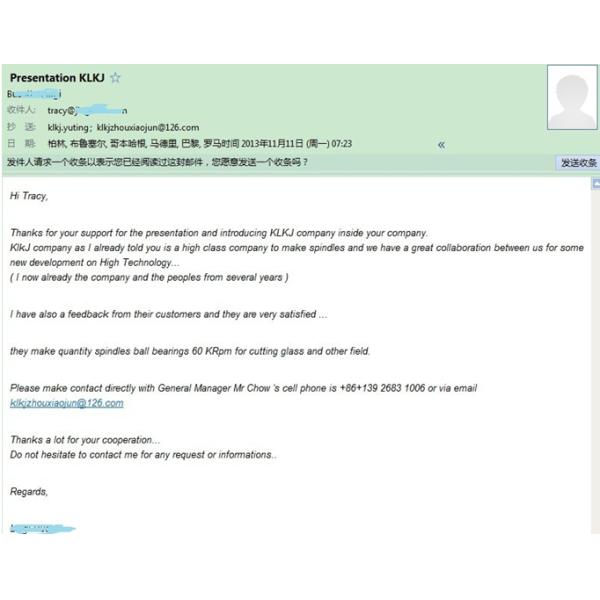

COMMENT FROM CUSTOMER
